4 POST 6 TON VEHICLE LIFT AECL4600W BY LUFTEN
SIX MONTHS INTEREST FREE UNTIL THE END OF JUNE
Work on all light commercial and RVs with ease with this extra wide lift
6 TON 4 POST LIFT， Pneumatic Safety Lock Release, With 24 Volt Control Box overall width 3800mm, overall length 5000mm
FOUR POST WIDE LIFT 6 TONNE WITH JACKING BEAM AECL4600w
Designed for the workshop dedicated to helping their customers, ensuring their safety by providing extensive full vehicle checks. The use of a 4 post lift allows the professional technician to thoroughly examine the engine, drive train, body and suspension thus saving the need for expensive maintenance work when warning signs can be detected and early rectification carried out.
FEATURES:
- CE Certified suitable for vehicle repair and maintenance service workshops
- 6 Ton lifting capacity
- 2 Jacking beams.
- Manual single point lock release, easy to operate
- Aluminum shell motor prevents overheating.
- Low profile, minimum height is 270mm.
- The heavy duty steel wire drum, ensures the vehicles safety.
- Adjustable runways make the lift suitable for a greater range of vehicles.
- The automatic operated mechanical lock engages every 50mm in the lifting process to ensure the vehicle lifting safety.
- Runway synchronizer system prevents vehicles from tilt possibly.
- The hydraulic system is equipped with device for over-load prevention.
- Protection against steel rope breakage device provided.
- 24V safety voltage used for control system.
- Routine testing with 115% dynamic and 150% static loading.

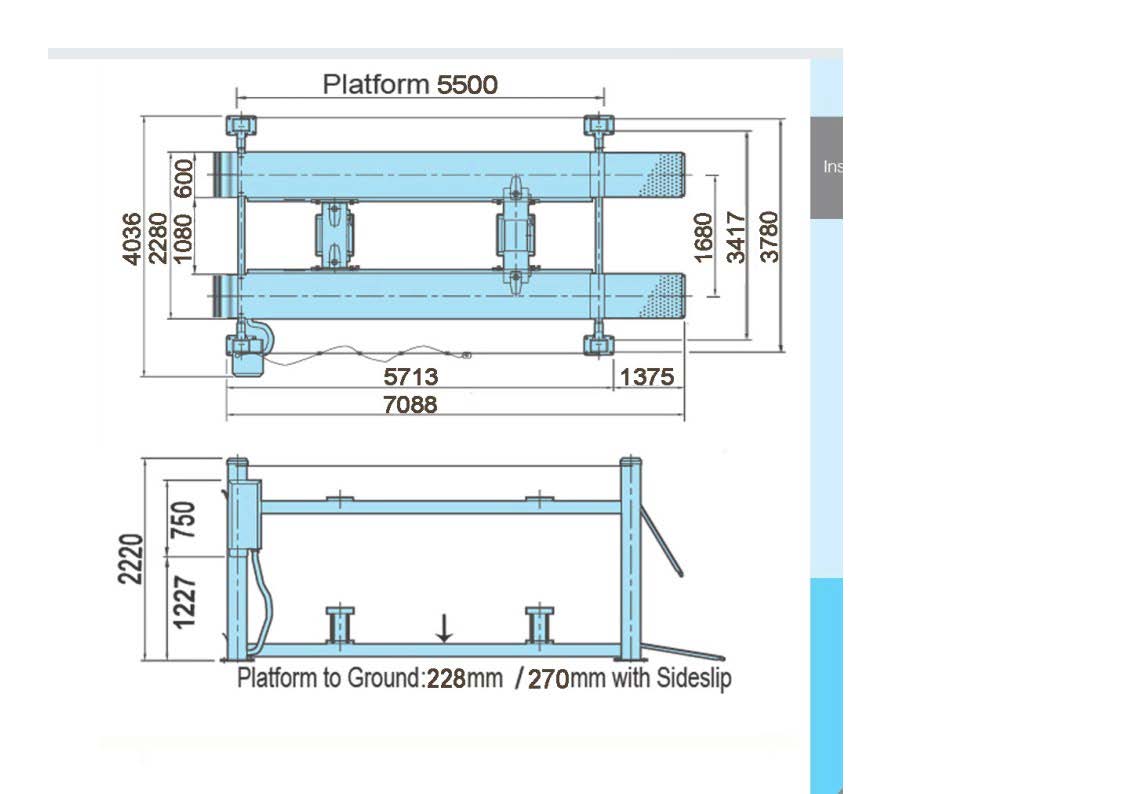

TECHNICAL SPECIFICATION:
|
Model |
AECL4600W |
|
Lifting Capacity |
6000 kg |
|
Maximum Lifting Height |
1800 mm |
|
Minimum Height |
184mm |
|
Lifting Time |
55-60 Sec |
|
Lowering Time |
48-55 Sec. |
|
Overall Height |
2250 mm |
|
Overall Width (Drive through) |
3800 mm |
|
Overall Width (With Hydraulic Pump) |
3645 mm |
|
Overall Length (Without Ramps) |
5500 mm |
|
Overall Length (With Ramps) |
6860 mm |
|
Width Between Runway |
910 mm |
|
Runway Width |
550 mm |
|
Runway Length |
4600 mm |
|
Air Supply |
6-8 bar |
|
Read Oil Pressure |
20 Mpa |
|
Motor Power |
3.0 KW |
|
Electricity Supply |
415V/50Hz/3Phase |
Australian Standard AS/NZ 1418.9:1996 and AS/NZS 2550.9:1996,
BRISBANE SYDNEY MELBOURNE HOBART
FINANCE AVAILABLE AT VERY COMPETITIVE RATES
http://www.autoequipaustralia.com.au/finance/
Additional information
| Weight | 2650 kg |
|---|---|
| Dimensions | 580 × 60 × 70 cm |
