iCarsoft HD V3.0 for Heavy Duty Diagnostic Tool FOR HEAVY DUTY TRUCK & CARS TWO IN ONE

PRODUCT INTRODUCTION

HEAVY DUTY& OBDII DIAGNOSTIC TOOL HD
V3.0 IS PROFESSIONAL AND POWERFUL TRUCK FAULT DIAGNOSTIC TOOL DEVELOPED BY
ICARSOFT TECHNOLOGY INC. WITH 2.8” TFT LCD AND UNIQUE DIAGNOSTIC SOFTWARE
OF TRUCKS IN COMPLIANCE WITH STANDARD PROTOCOLS(J1587,J1939 ANDJ1708), IT HAS
10 MODES OF OBD/EOBD CAN TESTS FOR A COMPLETE DIAGNOSIS, AND ALSO SUPPORT
6PIN&9PIN ADAPTER FOR SOME SPECIAL TRUCKS.

READ & CLEAR CODES FOR MULTI-SYSTEMS

DISPLAY LIVE DATA IN TEXT FOR EASY DATA
REVIEW

BATTERY TEST ALLOWS YOU GETTING THE VOLTAGE
OF BATTERY WITH OBD PORT BY THE HD V3.0

THE HD V3.0 CAN RECORD THE VEHICLE TEXTS
HISTORY AND IDENTIFY THE VEHICLE INFORMATION AUTOMATICALLY. ALSO KEEP THE LIVE
DATA INFORMATION.

PRODUCT FEATURES

1. Support all heavy duty trucks in
compliance with standard protocols (J1587, J1939 and J1708).

2. Work on all cars, mini vans and light
duty vehicles (OBDII & CAN) from 1996 on and latest – European, American
and Asian.

3. Support all OBDII protocols: CAN, J1850
PWM, J1850 VPW, ISO9141 and KWP2000

Uniquely featured with battery power
monitor function.

4. Troubleshooting tips guide technicians
to the root of problems faster, saving diagnosis and repair time.

5. Read and erase generic codes (P0, P2, P3
and U0), manufacturer specific codes (P1, P3 and U1) and pending codes.

6. Easily determine the cause of the Check
Engine Light (MIL) and turn off Check Engine Light (MIL), clear troubles codes
and reset monitors.

7. Display DTC definition, freeze frame
data, monitor and I/M readiness status (emissions) and vehicle information
(VIN, CIN and CVN)

8. Read live O2 sensor test data.

9. Read PCM live data stream with graphic
data Display.

10. Enhanced OBDII Mode 6.

11.Battery test allows you getting the
voltage of battery with OBD port by the scan tool when the engine starts.

12. Multilingual menu and DTC definitions – English, German,
Dutch, Spanish and French.

13. Software upgrade via computer

OBDII FUNCTION

1. Read Codes

2. Erase Codes

3. I/M Readiness -- I/M Readiness indicates
whether or not the various emissions-related systems on the vehicle are
operating properly and are ready for Inspection and Maintenance testing.

4. Data Stream

5. Freeze Frame -- When an emission-related
fault occurs, certain vehicle conditions are recorded by the on-board computer.
This information is referred to as freeze frame data. Freeze Data is a snapshot
of the operating conditions at the time of an emission related fault.

6. O2 Sensor Test -- This option allows
retrieval and viewing of O2 sensor test results for most

recently performed tests from the vehicle '
s on-board computer.

7. On-Board Monitoring -- This function can
be utilized to read the results of on-board diagnostic

monitoring tests for specific
components/systems.

8. Evap System Test -- The EVAP test
function lets you initiate a leak test for the vehicle's EVAP system. Before
using the system test function, refer to the vehicle's service repair manual to
determine the procedures necessary to stop the test.

9. Vehicle Information -- The option
displays the vehicle identification number (VIN), the calibration verification number
(CVN), and other information of the test vehicle.

10.Retrieve generic (P0, P2, P3, and U0), manufacturer
specific (P1, P3, and U1) codes and pending codes

11.Turn off Check Engine Light (MIL), clear
codes and reset monitors

12. Read live PCM datastream

13. Support CAN (Controller Area Network)
and all other

14.Multilingual menu and DTC definitions-
English, Spanish, and German, etc

15.Read pending DTCs

16.Read permanent DTCs

17. DTCs search

18. Supports most of the OBDII/EOBD test
modes include: CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.

19. Works on most of 2001 and later OBDII
compliant PETROL European vehicles

20. Works on most of 2004 and later OBDII
compliant DIESEL European vehicles

21. Works on most of 1996 and later OBDII
compliant US and Asian vehicles

22. View & Graph Live Data in Color
Graphing and blazing fast refresh rate for better graphing and live data
readings.

23. Comprehensive Help, Including OBD
Parameter, Mode Explanations & More.

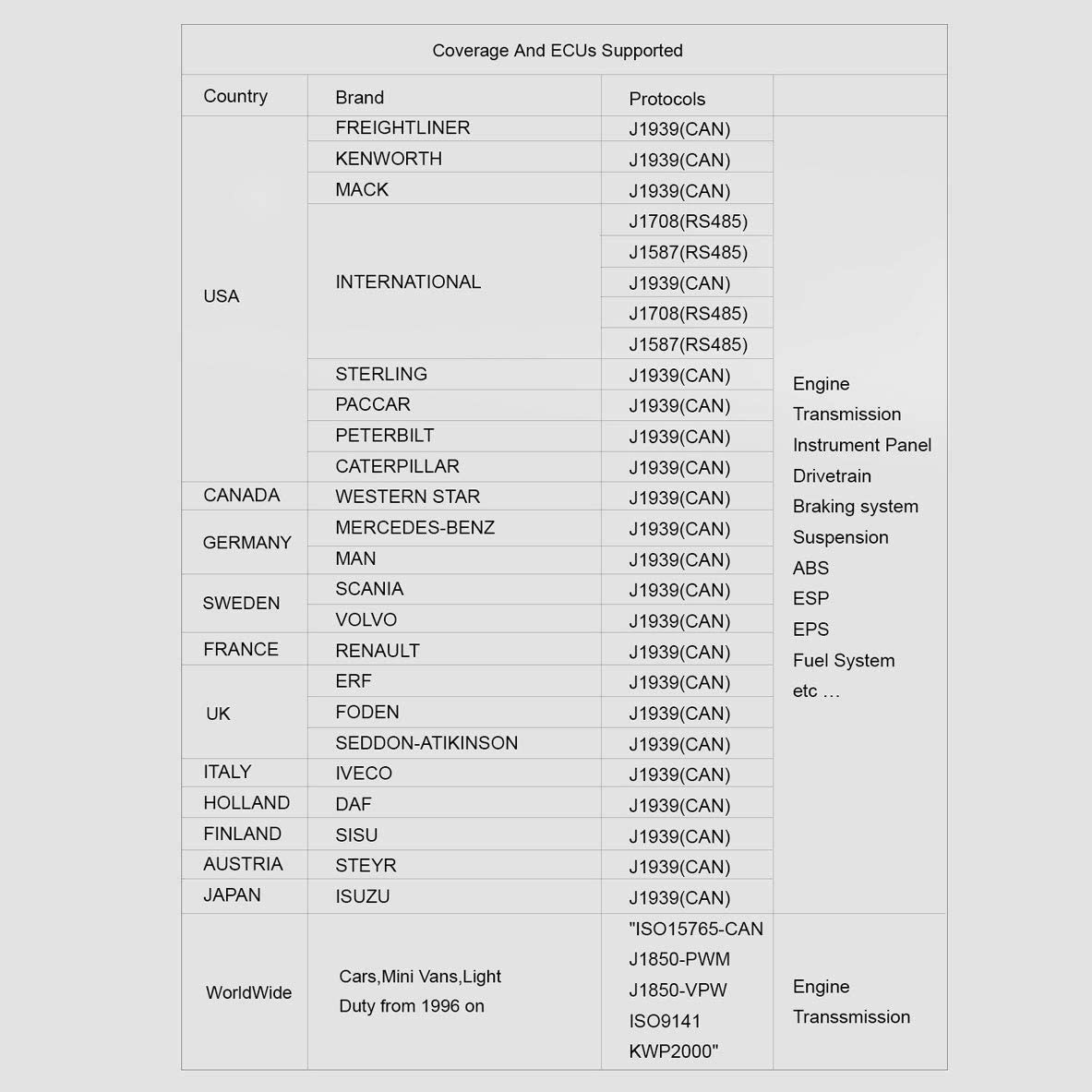

MANUFACTURERS COVERED

PRODUCT SPECIFICATIONS

1.Display: 2.8” TFT LCD, 320*240
Pixels

5.Operating current: 150mA@12V (Typical)

2. Operating Temperature: 0°C~50°C

6. Power consumption: 1.8W (Typical)

3. Storage Temperature: -20°C ~70°C

7. Dimension: 142mm*90mm*22.5mm (L x W x H)

4. Operating Voltage: 9 ~ 28V
